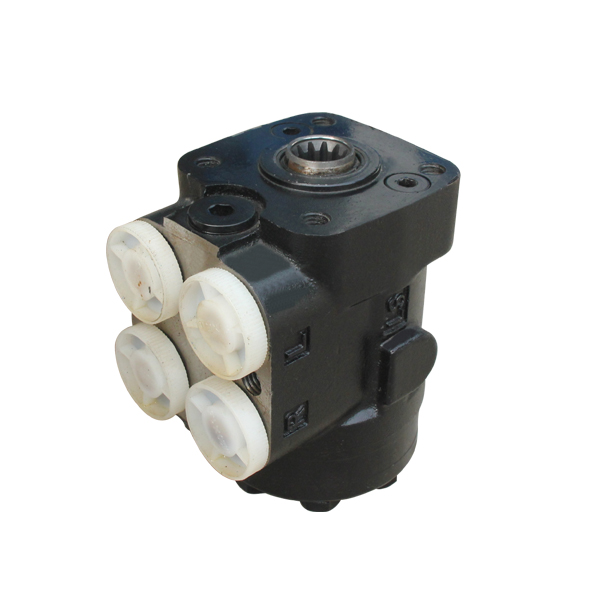

101S Hydraulic Steering Control Unit
101S Series of Fully Hydraulic Steer Control Unit

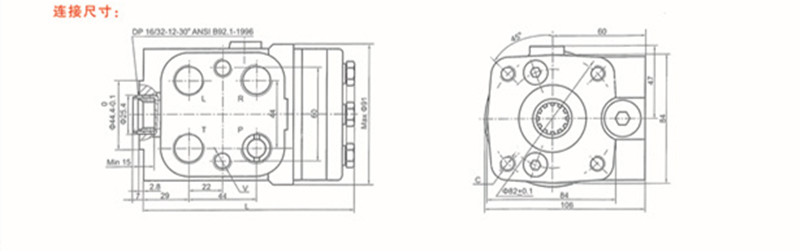

It has same Connection Data with 101 series, In addition, it contains relief valve, overload valve,
fill oil valve and entry check valve, which can be combined according to your special requirements.
Compact structure, Small volume, Easy to use, and complied with international standard.
| 型号 TYPE |
排量 Displacement (ml/r) |
额定流量Rated Flow (l/min) |
最大入口压力 Max.input Pressure(Mpa) |
最大连续背压 Max.Cont.Back Pressure(Mpa) |
正常输入扭矩 Normal Cont.Back Pressure(Mpa) |
长度 L Length (mm) |
重量 Weight (kgs)
|
| 50 | 50 | 5 | 17.5 | 2.5 | <2.5 | 131 | 5.4 |
| 63 | 63 | 6 | 17.5 | 2.5 | <2.5 | 133 | 5.5 |
| 80 | 80 | 8 | 17.5 | 2.5 | <2.5 | 135 | 5.6 |
| 100 | 100 | 10 | 17.5 | 2.5 | <2.5 | 138 | 5.7 |
| 125 | 125 | 13 | 17.5 | 2.5 | <2.5 | 141 | 5.9 |
| 160 | 160 | 16 | 17.5 | 2.5 | <2.5 | 146 | 6.0 |
| 200 | 200 | 20 | 17.5 | 2.5 | <3 | 151 | 6.2 |
| 250 | 250 | 25 | 17.5 | 2.5 | <3 | 157 | 6.5 |
| 280 | 280 | 28 | 17.5 | 2.5 | <3 | 162 | 6.6 |
| 315 | 315 | 32 | 17.5 | 2.5 | <3 | 167 | 6.9 |
| 400 | 400 | 40 | 17.5 | 2.5 | <3 | 177 | 7.2 |
